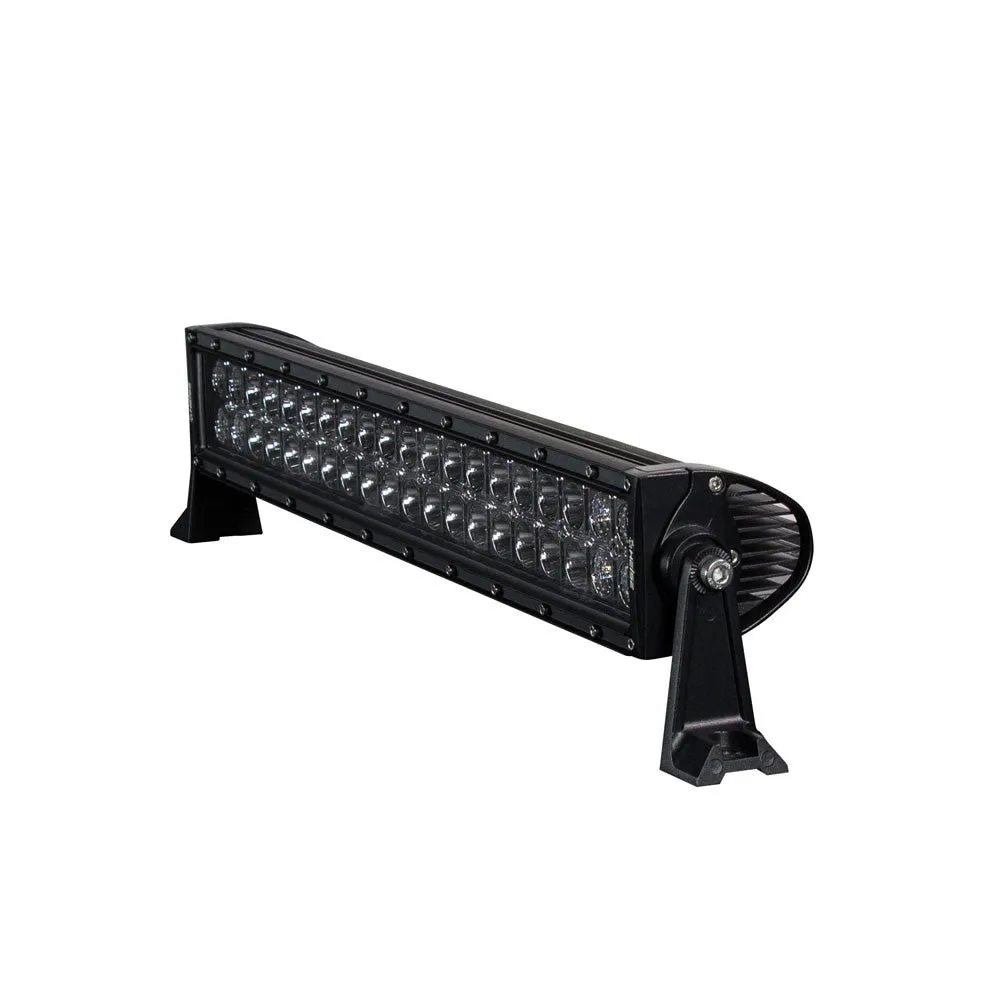

Dual Row LED Light Bar - 22"

SPECS

• Input Voltage: 10-30V DC
• Power Consumption: 120W
• (40-3W CREE LEDs)
• Raw Lumens: 9600
• LUX @ 10M: 655
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90)/Spot(8)

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: Black
• Lens Material: PC
• Mounting Bracket: Die-cast Aluminum
• Length of Bar without Mounting Brackets: 22.12"
• Hole Dimensions:

• Brackets turned inward - 21.50"
• Brackets turned outward - 23.75"
• Mounting Bolt Drill - .25"

• Height of Light Bar Itself: 3"
• Depth of Light Bar Itself: 3.50"
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: -40C to 60C
• Current Consumption: 6.3 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Specifications:

• Beam Pattern: Spot-Flood Combo
• Length (Inches): 22"
• Housing: Black
• Voltage - Input Range (Volts): 12/24v
• Box Dimensions: 6"H x 7"W x 27"L WT: 8 lbs
• UPC: 086429297924
